SERIES | HSLC | HSLC/2 | ||||||
---|---|---|---|---|---|---|---|---|
TYPE | HSLC-1610 | HSLC-1410 | HSLC-1209 | HSLC-1206 | HSLC-1610/2 | HSLC-1410/2 | HSLC-1209/2 | HSLC-1206/2 |
Laser Power | 50W/60W/90W/100W/130W | 50W/60W/90W/100W | ||||||
Laser Type | Co2 sealed laser tube,water-cooled,10.6 um | |||||||
Work Size(mm) | 1590×990 | 1370X990 | 1190X890 | 1190X590 | 790X990×2 | 680X990×2 | 590X890×2 | 590X590×2 |
Engraving Scanning Speed | 25-30000mm/min | |||||||
Cutting Speed | 25-10000mm/min | |||||||
Laser Output Control | real-timeadjustable | |||||||
Highest Scanning Precision | 2500DPI | |||||||
Graphics Format Support | DST、PLT、BMP、DXF、AI | |||||||
Software Support | CORELDRAW、PHOTOSHOP、ILLUSTRATOR、AUTOCAD | |||||||
Dichroic Cutting | reaches 256 colors to cut | |||||||
Dimensions(mm) | 2120×1600×990 | 1920×1600×990 | 1820×1500×990 | 1820×1200×990 | 2120×1600×990 | 1920×1600×990 | 1820×1500×990 | 1820×1200×990 |
Total Power | 1000/1200W | 1200/1500W |
◆Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision, less waste, high efficiency

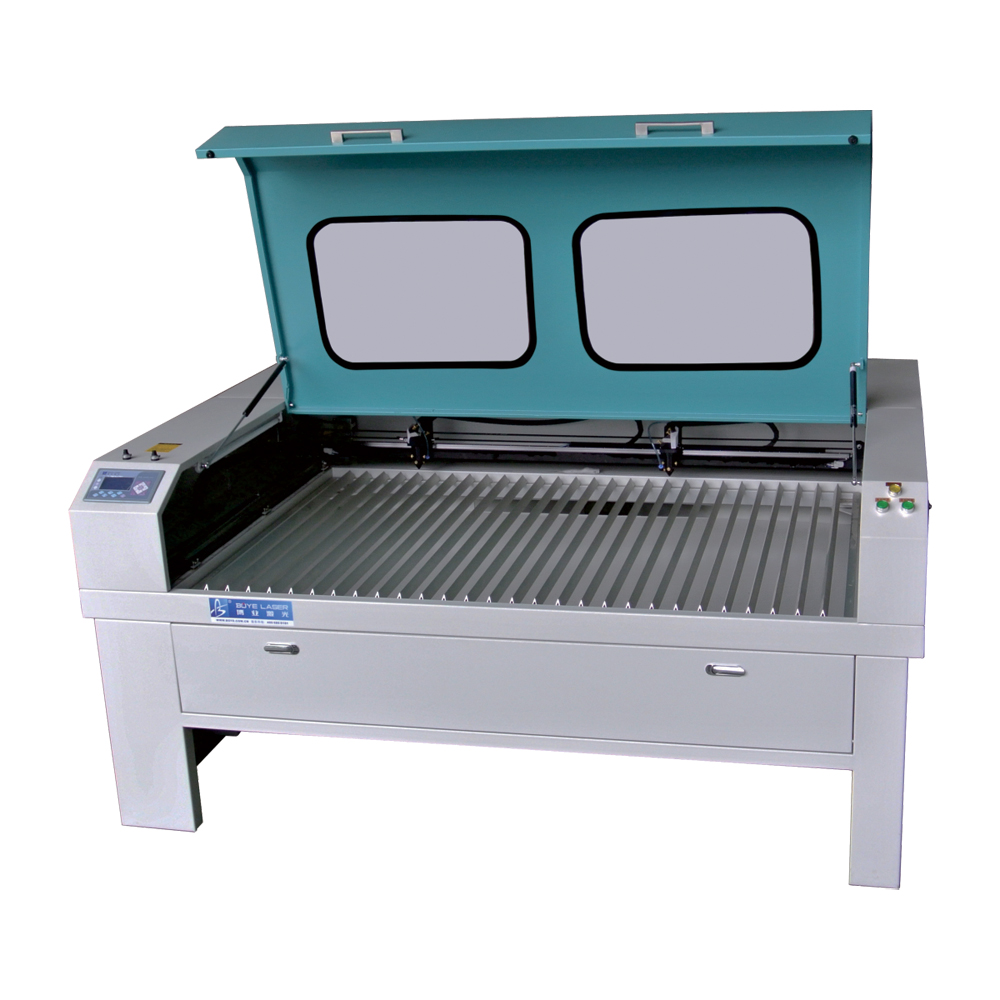

◆Optional double laser heads cutting machine so that the exponential growth efficiency
◆Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.
◆The unique design of the new structure to support high-speed cutting, engraving, from low-end to high-end to meet the various product requirements
◆Unique intelligent predictive algorithm and improved control algorithm to ensure that processing speed, smooth and efficient
◆Operational speed, laser energy real-time tunable, and very easy for customers to operate
◆Cutting energy automatic compensation function, cutting greatly improved results
◆Using LAN interface, two-way communications, improved transmission speed and accuracy; One computer can controlled up to 254 laser equipment, greatly reduces customer investment and maintenance costs
Application Of Industry:Model industry (construction model, aviation navigation model, wooden toys), the advertising industry, decorative, crafts gift industry, electronics and electrical appliances industries.and electric appliances, etc.
Applicable Materials:Acrylic, wooden planks (light wood, wood), bamboo products, color plates, paper, leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards, lamp,non-metallic materials and so on.
