SERIES	LE	LS

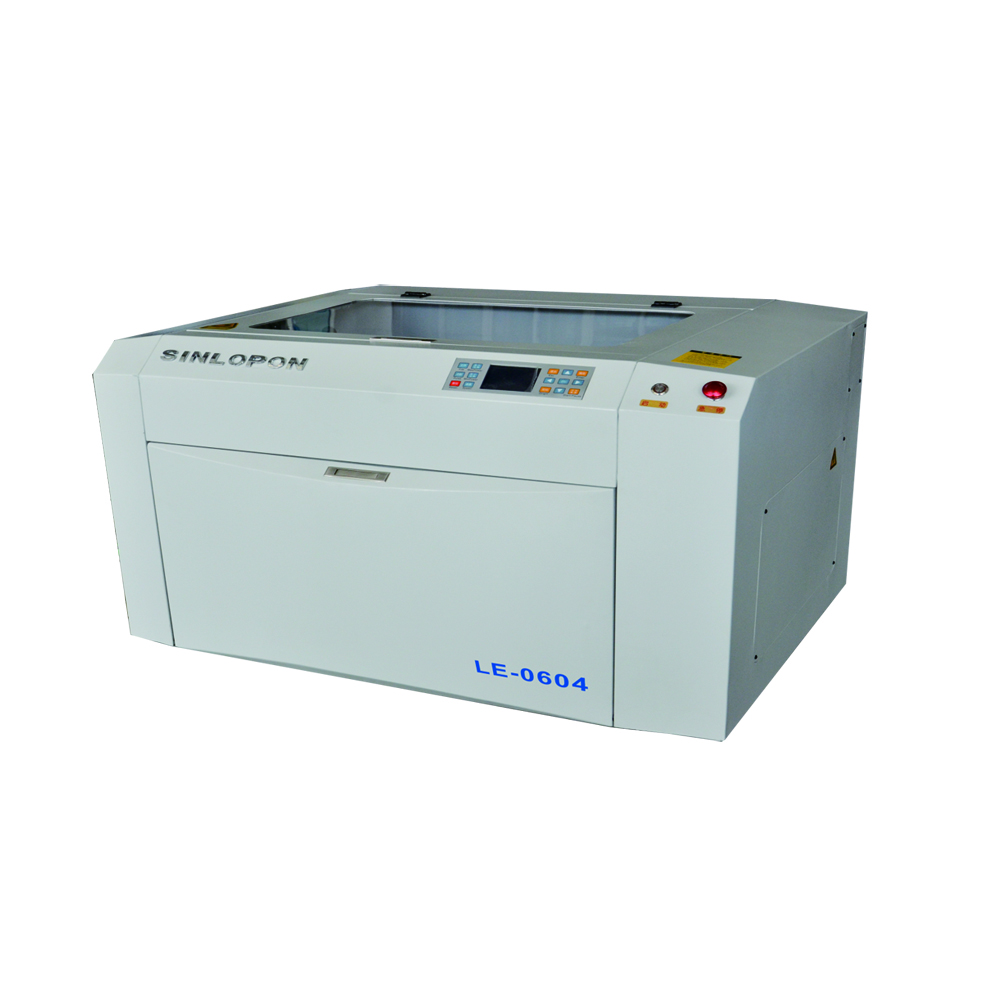

One laser head type	LE-0604	LS-0604	LS-0906	LS-1008	LS-1410	LS-1610	LS-1810
Double laser head type	-				LS-1410/2	LS-1610/2	LS-1810/2
Size(mm)	600X400	600X400	900X600	1000X800	1400X1000	1600X1000	1800X1000
Laser Type	Co2 DC glass laser tube,water-cooled,10.6um
Laser Power	60W,90W,100W,130W
Speed	25-40000mm/min
Repeat postioning accuracy	±0.01mm
Lifting range	230mm	none
Supported File Format	PLT、DXF、AI、BMP
Compatible Software	CORELDRAW、ILLUSTRATOR、AUTOCAD、Photoshop
Work Environment	Room temperature 3-45 degrees C, humidity 30-80%
Electricity	220V±5%/50HZ
Rated Power	800W	800-1500W
Weight	110kg	150kg	100kg	180kg	260kg	280kg	300kg
Machine Size(mm)	990X810X520	990X800X410	1440X1000X1050	1540X1200X1050	2000X1550X1050	2200X1550X1050	2400X1550X1050

◆Control system: The latest laser engraving and cutting control system, with excellent motion performance and user-friendly man machine operation interface;
◆File transfer: Send the file by USB, Ethernet and wireless WIFI , support U disk read directly;
◆Smoke exhaust system: The integrated smoke exhaust system has the advantages of low noise, good smoke exhausting effect, small space occupied and no need to install;
◆Cooling system: Using the industrial circulating water cooling system, which adopt the totally-enclosed structure design and do not need to change the water frequently is more convenient and fast;
◆Motion structure: The professional sliding type linear guide,more quickly and longer life than ordinary roller profile guide.

Education industry,model industry (construction model,aviation navigation model, wooden toys), the advertising industry, decorative, crafts gift industry, electronics and electrical appliances ,Advertising signs logo, crystal ornaments, paper cutting techniques, relief, bamboo carving simple process, the printing plate, leather clothing, embroidery, frame production. Industries.
