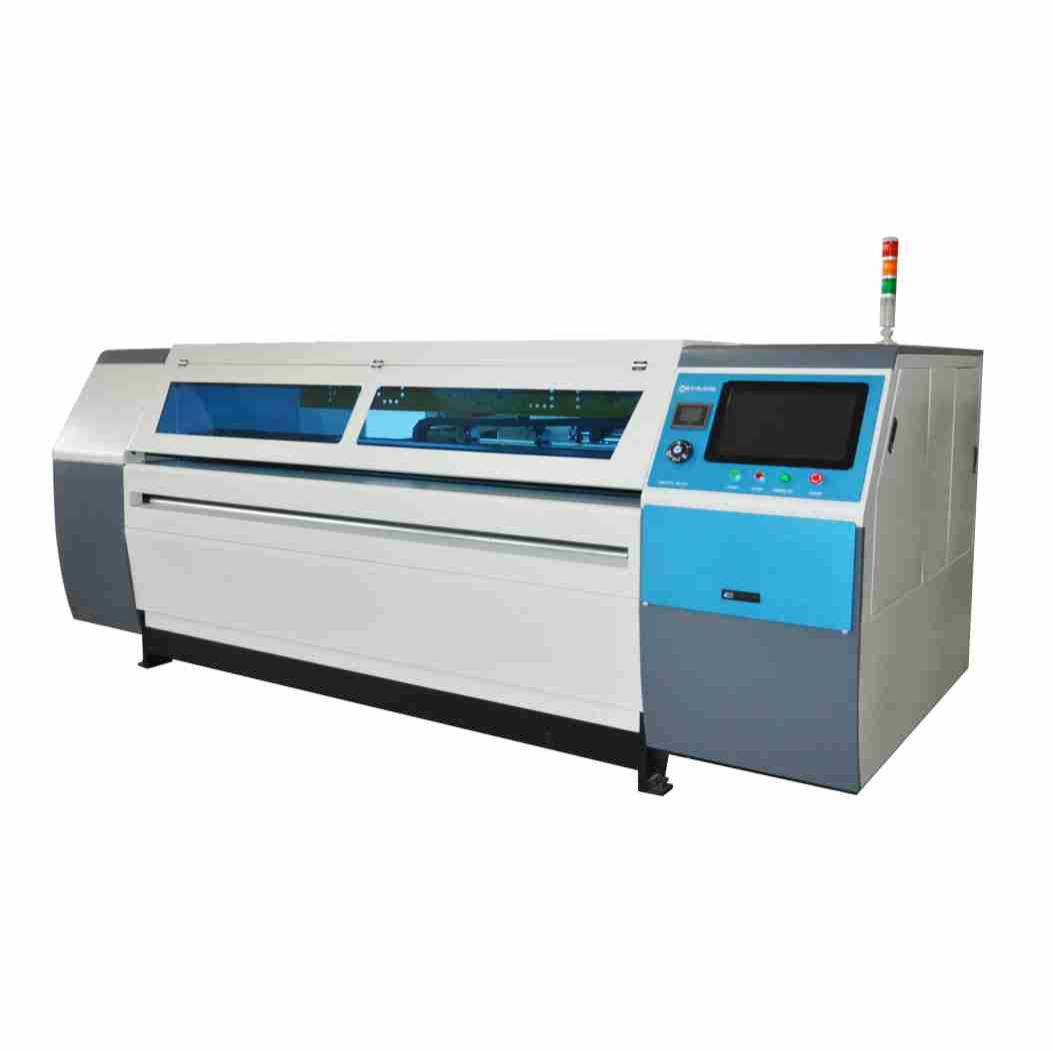

| TYPE | AWNP-G-25S4 | AWNP-G-2534 | AWNP-G-25-UV |
|---|---|---|---|
| Quantity of print head | 12、16 | 2、4、6、8（Optional） | |
| Printing area | 2500mmX2000mm | 2500mmX2000mm | 2300mm*2000mm |
| Print head(1 PASS) | ≈960、1280㎡/h | ≈120、250/375、500㎡/h | |
| The max printing resolution | ≥600dpi | ||
| The min text | 2mm | ||
| Graphics Format Support | PDF、JPG、BMP、TIF | ||
| Color model | C、M、Y、K | C、M、Y、K、W | |
| Ink Type | Water ink and waterproof water ink | UV ink | |
| Printing head | Corrosion-resistant industrial ink jet head | ||
| Control system | Digital-printing control system from LeiPeng Intelligent Technology | ||
| Drying speed | Drying after printing for carton.(the others according to different materials) | ||
| Ink-provide | Two ink supply, Fully enclosed ink supply channel efficiency | ||
| Work environment | Room temperature 3-45 degrees C, humidity 20-70% | ||
| Press roll method | Electrical control | ||
| Feeding material | Automatic | ||
| Machine size | 4140mmX2700mmX1620mm | 4000mmX2600mmX1700mm | 4000mmX2600mmX1700mm |
| Rated Power | ≈2.3KW | ||
| Electricity | 220V±10% 50/60HZ | ||
| Weight | 3000KG | 2300KG | |
◆ intelligent jump white function: large format large blank area automatically jump white jet printing, production more efficient
◆ no energy consumption Paper feeding system: paper delivery smooth format 2500 × ≦ 1500㎜ manual single sheet can be longer paper, cardboard stacking by the size of the board size, flatness, strength, thickness
◆ intelligent paper detection system: automatic detection of paper and its thickness, intelligent adjustment car height
◆ automatic maintenance of the nozzle: the software has a nozzle automatic flash spray maintenance function to ensure that the nozzle is smooth
◆ With corrosion-resistant all-metal ink supply channel Industrial grade nozzle: with 1280 nozzles with 600dpi high resolution, nozzle life of up to 100 billion times, up to eight gray color; nozzle comes with positioning pin, Easy installation and maintenance, fast inside the nozzle can be heated to 60 degrees, can adapt to different ambient temperature and ink viscosity
◆ reliable PCI communication: the use of high-speed and stable industrial-grade PCI interface all-fiber data communication mode
◆ simple printing debugging: the use of advanced nozzle switch control and feather technology, easy to complete the printing overlay adjustment. So that the printing effect is more perfect
◆ order of intelligent order: the customer free to set the order of continuous production of different orders and in accordance with the order of automatic production, the middle of the operator does not need another row to achieve 3 seconds quick for a single, more time and effort
◆ equipment in line with CE standards and human industrial design requirements
