| SERIES | MCV-AB | CV-AB | CV/2-AB | ||||
|---|---|---|---|---|---|---|---|

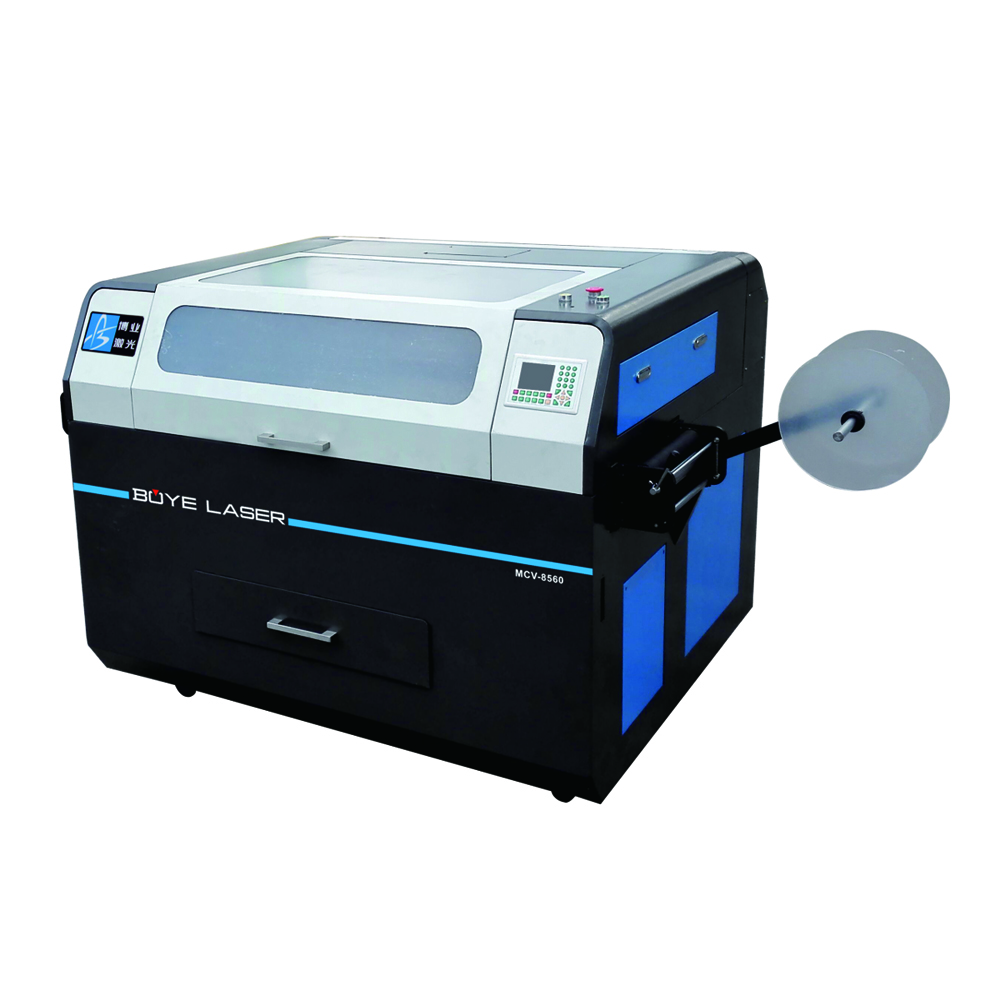

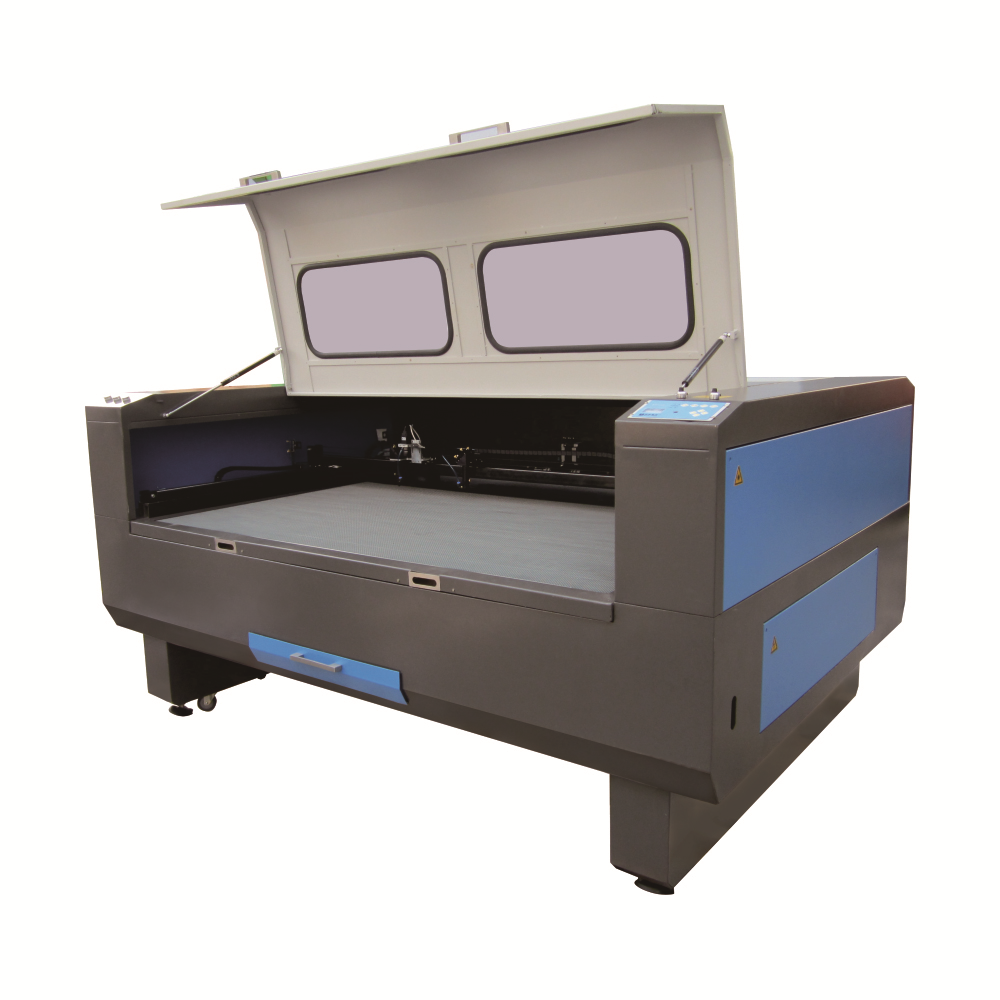

| TYPE | MCV8560-AB | CV-1008-AB | CV-1610-AB | CV-1810-AB | CV-1008/2-AB | CV-1610/2-AB | CV-1810/2-AB |
| Laser Power | 50W/60W/90W/100W/130W/30WRF/60WRF | ||||||
| Laser type | CO2 laser tube,water-cooled,10.6 um | ||||||
| Work Size(mm) | 850×600 | 850×800 | 1450×1000 | 1650×1000 | 400×900×2 | 700×1000×2 | 800×1000×2 |
| Cutting Speed | 25-40000mm/min | ||||||
| Laser Energy Contrl | Real-timeadjustble | ||||||
| Feeding way | Automatic feed | ||||||
| Feeding System | Special feeding device for Rolled-up label(optional) | ||||||
| Camera system | 5 million-pixels CCD camera inported from Japan | ||||||
| Graphics Format Support | DST,PLT,BMP,DXF,AI | ||||||
| 支持软件 | TAJIMA、CORELDRA W、PHOTOSHOP、ILLUSTRATOR、AUTOCAD、all type of AUTOCAD software in cloth | ||||||
| Dimensions(mm) | 2520×1350×1220 | 1650×1550×1150 | 2250×1750×1150 | 2450×1750×1150 | 1650×1550×1150 | 2250×1750×1150 | 2450×1750×1150 |
| Total Power | 800-1000W | 1000-1200W | 1500/1700W | ||||
◆Easy operation:The CCD camera positioning cutting and the feeding platform for the rolled-up label can cut the rolled-up label by automatic,and dispense with manual positioning and feeding;
◆High quality: Incision caused by laser cutting is smooth, burr-free and with automatical pinching and no distortion;
◆High precision: 5-million-pixel CCD camera imported from Japan is applied to deal with various complex graphics and achieve high-precision cutting;
◆High speed: Unique and intelligent forecasit control algorithm with high performance linear guideways could assure that stability and efficiency of operating device;
◆Long lifespan: High-performance CO2 laser optical system offers stable laser power and long lifespan;
◆Broad application range: Design of double work platform can meet diverse needs of customers;
Application Of Industry:Mark industry, Mark weaving industry, embroidery industry, the toy industry, Cardboard industry,mobile phone panels,the technology industry and other gifts.
Applicable Materials:Leather, cloth, plexiglass, wooden, paper products.
